O2 Mk9 Sensor Add-on KIT

Mk9 O₂ Sensor KIT

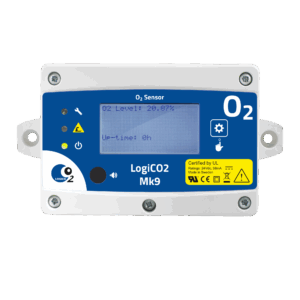

This complete plug and play KIT can be used to add an additional sensor to an existing LogiCO2 Safety System. The sensor is pre-set to ID2 and receives its power from the existing Safety System. LogiCO2´s Mk9 O2 Sensor measures the O2 concentration and alerts in the event that O2 concentration reaches the pre-set alarm levels. When installed, the system will continuously monitor the O2 concentration in the room or area where the O2 sensor is located. It contains a Mk9 O2 Sensor with display, a Horn/strobe, cabling and signage. Up to eight sensors can be connected to a LogiCO2 Safety System, providing a sophisticated and powerful CO2 & O2  Safety System while still being the most economical and easiest system on the market. All LogiCO2 sensors have automatically calibration as standard. The alarm levels can be changed to any level to comply with all local Safety Codes and legislation.

The pre-set alarm levels are:
– Evacuation alarm: 19,5% O2
– Up to 3 different alarm levels can be set using the dip switches

What is in the package?

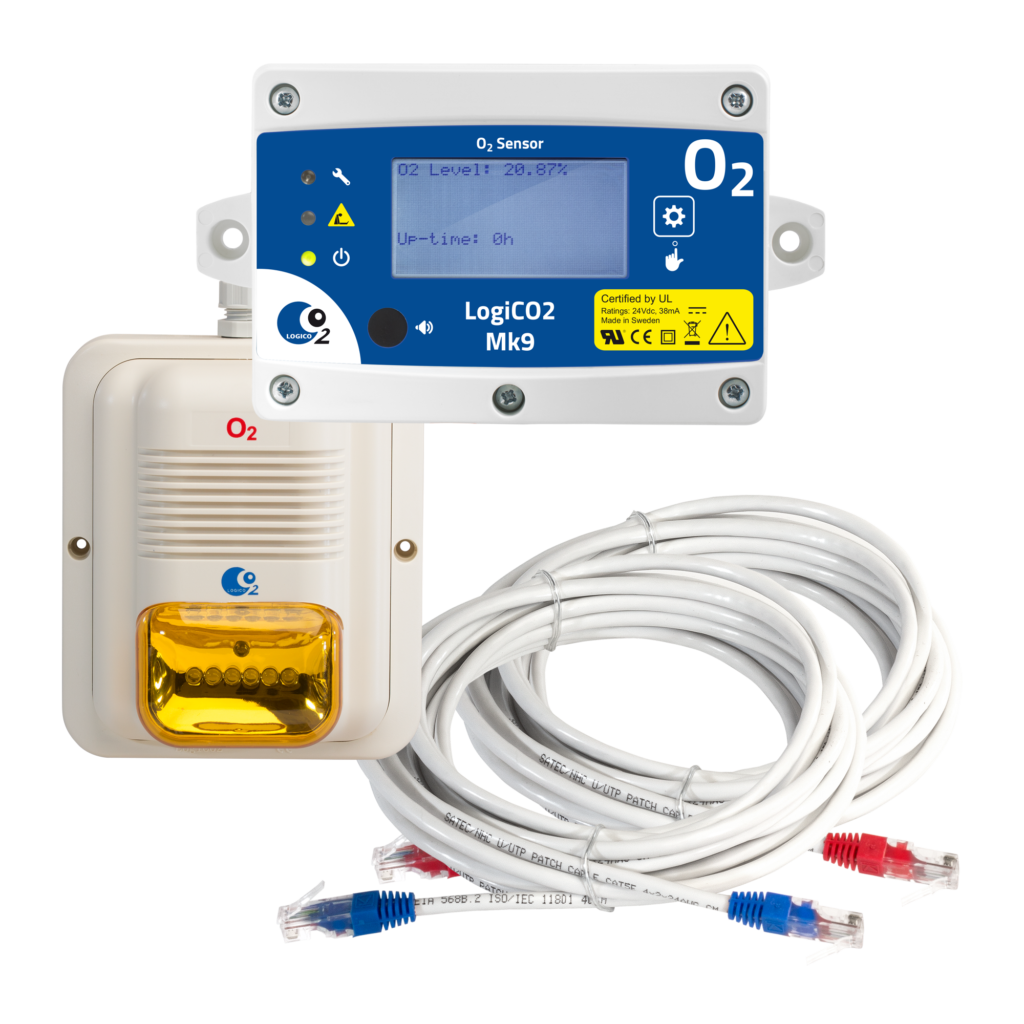

O₂ Mk9 detector + Horn/Strobe LED with cable + 10 m power/ communication cable + plug lock + 5m signalization cable + 1 RJ45 1‐1 connector + 1 RJ45 1‐4 connector + manual + H/S sign.

Please note:
A separate installation manual is provided with each extra O₂ sensor kit explaining the simple installation process for adding additional sensors to an existing set.
