Art no: 2057

O2 Mk9 Detector Base SET

Art no: 2057

O2 Mk9 Detector SET
We believe that sensors should have as little service as possible over its lifespan. We therefore decided to stay away from the traditional Electro Chemical measuring cells traditionally used to monitor oxygen, when we developed our O2 Mk9 Detector. Our OPTICAL O2 sensor uses the same proven self-calibration technology that we have used for many years with our CO2 sensors.

The LogiCO2 O2 sensor communicates via Modbus with the Mk9 Central Unit and can be used either together with other sensors or as a standalone unit. The default alarm levels is 19,5%. The LogiCO2 O2 sensor is delivered together with a Horn/Strobe alarm device.

The O2 Mk9 Detector SET is available in the following languages:
Chinese Simplified
Danish
Dutch / Netherlands
English
Filipino
Finnish
French
German
Hebrew
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Portuguese Brazilian
Russian
Spanish
Swedish

What is in the package?

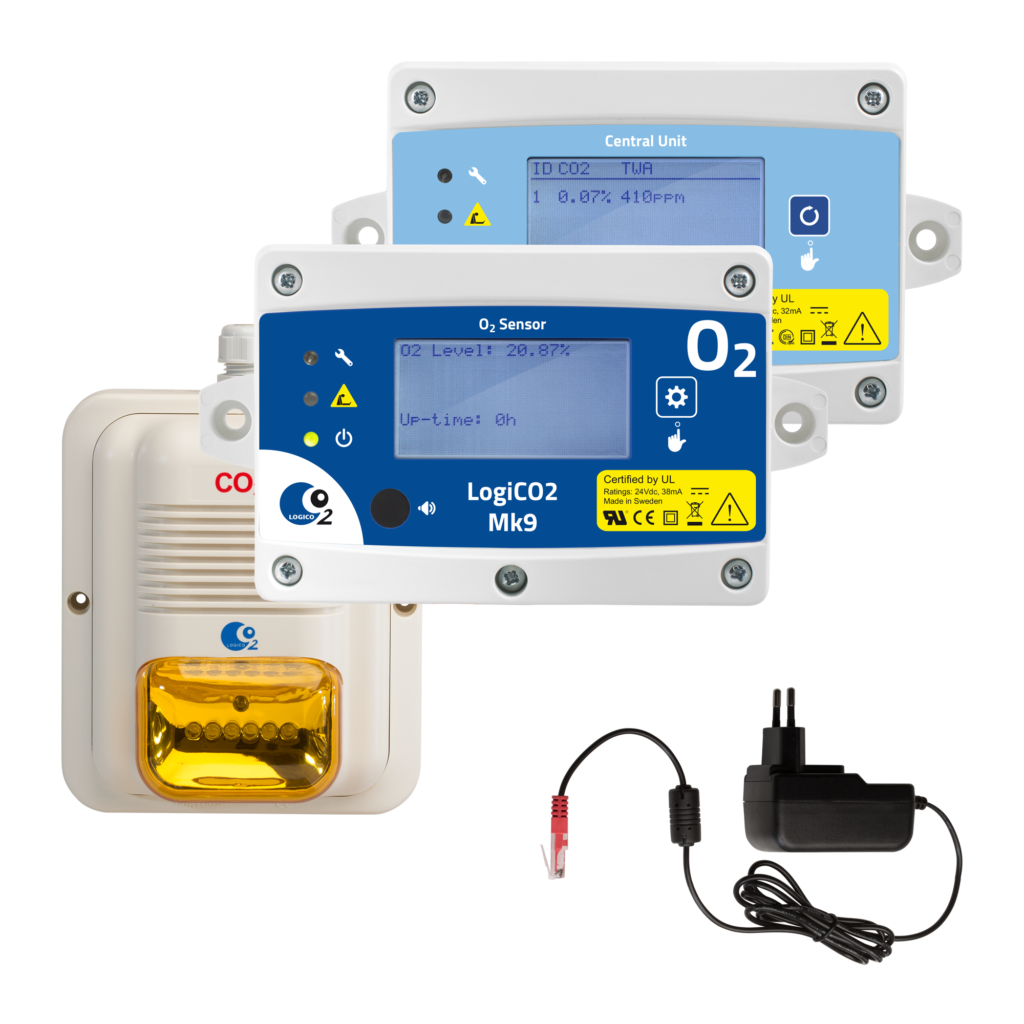

Optical long life O2 sensor SET with 19.5% alarm limit. O2 Mk9 detector + Central Unit Mk9 + Horn/Strobe LED + 10 m power/ communication cable + power supply + plug lock + 5m signalization cable + 1RJ45 1‐1 connector + 1 RJ45 1‐2
connector + manual + Central Unit sign + H/S sign.

Specifications
Mk9 O2 Sensor, Specifications:
Power supply:
24V DC
Power consumption:
<30 mA
Wiring connections:
RJ 45
Digital interface:
RS485 serial port MODBUS
Outputs:
2 x transistor output 24V DC, Min 1 mA
Display:
Graphical 128x64, backlit
Acoustic signal-strength:
76 dBa (1m) max.
Operating principle:
FB-optical
O2 measuring range:
0-25 Vol.%
Accuracy O2:
<2% FC
Ambient temperature:
-20 to +50°C (-4 to +122°F). Only for indoor use.
LED indications
Green:
Operation
Yellow:
Fault
Red:
Alarm (<19.5% O2)
Sound indications
Beeping:
Fault
Continuous:
Alarm
Dimensions (LxWxD):
90 x 161 x 38 mm / 3.5” x 6.3” x 1.5”
Ingress protection:
IP54
