CO2 Alert Mk10 Detector Base SET

Art no: 2025 • Outdated

DISCONTINUED: The product has been replaced with CO2 Mk90 Stand-Alone Base SET (2090)

MK10 CO2 Safety system
The Mk10 CO2 Sensor is a Stand-Alone system that can be connected with the Mk9 Central Unit and Mk9 CO2 Sensor Set. This plug and play Set contains a stainless-steel protection bar to protect the sensor. It also includes a warning Horn/Strobe to be placed outside the Confined Space.

The alarm levels can be changed to harmonize will all Safety Codes and Legislation. All LogiCO2 sensors are automatically self-calibrated.

The default alarm levels are:
5.000 ppm Awareness Alert
5000 ppm TWA 8Hr (PEL)
1,5% (15.000 ppm) ½ STEL
3,0% (30.000 ppm) STEL

The MK10 CO2 is available in the following languages:system
Danish
English
Filipino
Finnish
French
Hebrew
Dutch / Netherlands
Indonesian
Italian
Japanese
Chinese Simplified
Korean
Norwegian
Polish
Portuguese
Portuguese Brazilian
Russian
Spanish
Swedish
German
Thai

What is in the package?

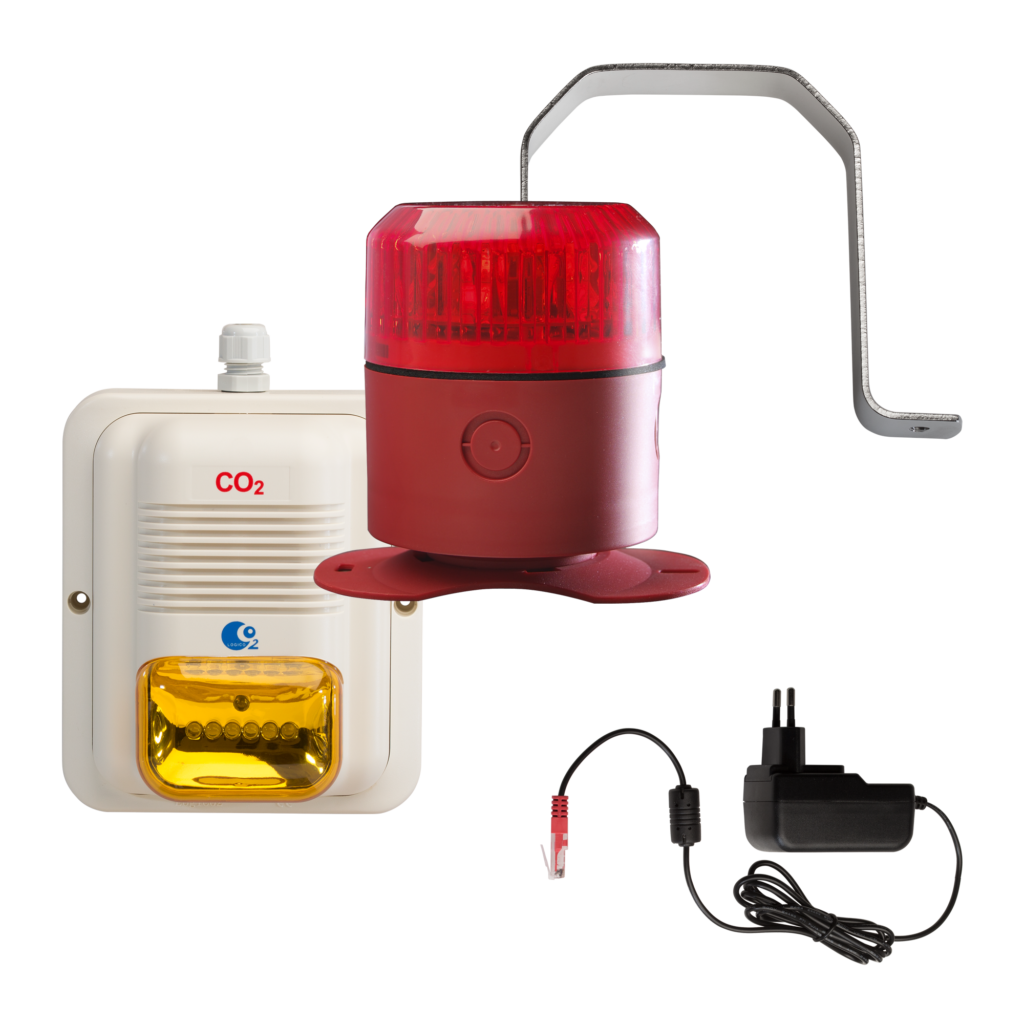

CO2 Alert Mk 10 with 5m power/communication cable and 10 m signal cable + power supply with cable + Protection bar + Horn/Strobe LED with cable + 2 RJ45 1‐1 Connector + plug lock + manual + Alert + H/S sign and collar seals.

Specifications
Mk10 CO2 Sensor, Specifications
Power supply:
24V DC
Power consumption:
< 300 mA (external optional warning lamp not included)
Wiring connections:
RJ 45
Digital interface:
RS485 serial port MODBUS
Outputs:
2 x transistor output 24V DC, Min 1 mA
Acoustic signal-strength:
85 dBa (1 m) max.
Approval:
Manufactured in accordance with DIN 6653-2.
The CO2 Safety System is tested and approved by the German TÜV-Rheinland.
EN 50081-1 / EN 50082-2 /CE.
Certified by UL.
Operating principle:
Non-dispersive infrared (NDIR) and thermistor
CO2 measuring range:
0-3 Vol.%
Extended CO2 range:
3-6,7 Vol.%
Gas sampling mode:
Diffusion
TWA (Time Weighted Average):
Calculation 8 h time span (most recent) with 2 min sample period. (Pat. Pend.)
Accuracy CO2:
±5% of measured value plus a pressure dependence of +1.6% of reading per kPa/0.295 InHg at 0-40°C (32-102°F).
Resolution:
0.01 Vol.%
Annual zero point drift:
<0.01 Vol.% with automatic self calibration feature
Ambient temperature:
-20 to +50°C (-4 to +122°F). Only for indoor use.
Compliance with:
2004/108/EG Sensor
General performance
Life expectancy:
> 15 years
Operating humidity range:
0 to 95% RH (non condensing)
Warm-up time (@ 22°C):
1 min.
Dimensions (Ø and H):
Ø 90 mm, height 120 mm / Ø 3,5”, height 4,7”
Ingress protection:
IP54
Overvoltage: Category II
Category II
Pollution degree:
II
